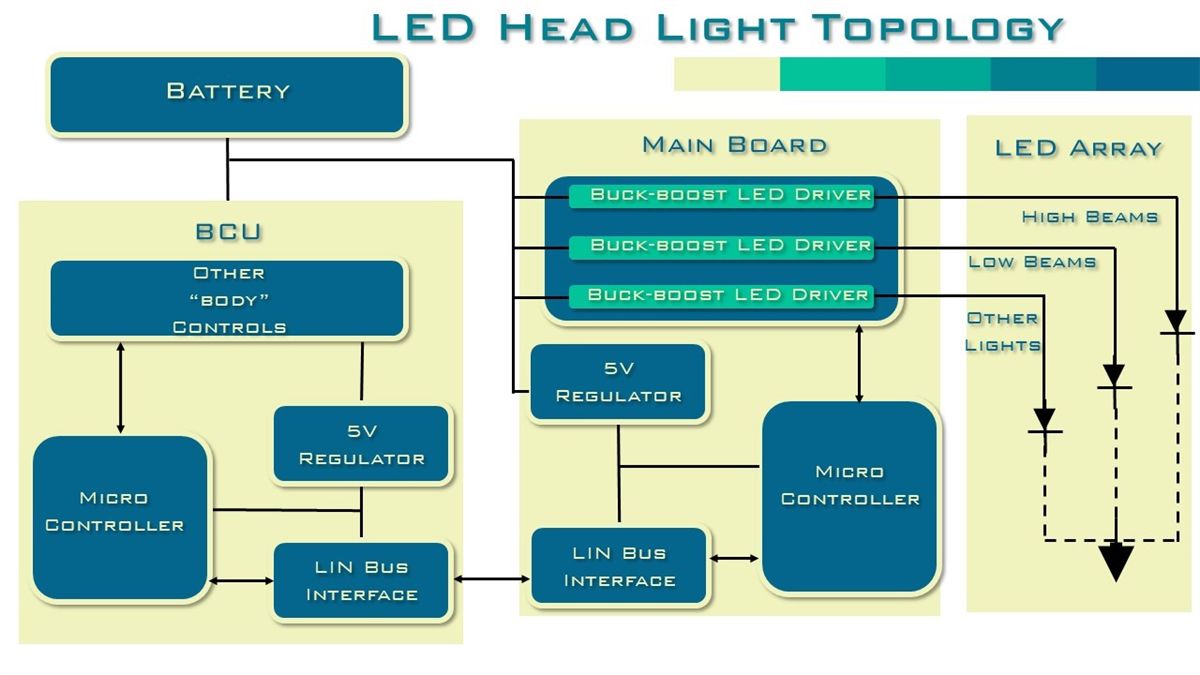

LED Head Lighting Toplogy


LED Head Lighting Application Recommended Device(output 12V-24V)

Application Function Spec. Package Type Recommended Parts
Power Regulator Boost Low Voltage MosFET N-CH 60V 10mOhm PRPAK5x6 PAN6040Y
N-CH 100V 20mOhm PRPAK5x6 PAN0040Y
N-CH 100V 47mOhm TO-252 PAN0016X
N-CH 100V 22mOhm TO-252 PAN0018X
Power Regulator Schottky 5.0A / 100V Low VF, Low IR SMA-HE SS5100AHE
5.0A / 100V Low VF, Low IR SMB SK510LB
10A / 100V Low VF, Low IR TO-277 PS10P100L
TVS 600W series SMB P6SMBXXCA
1000W series SMB SMB10JXXCA
