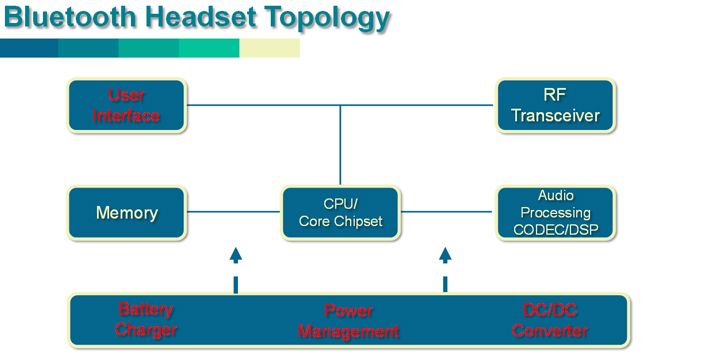

Bluetooth Headset Topology

Bluetooth Headset Recommended part

Application Function Spec. Package Type Recommended Parts
Power Management Low Voltage MosFET Dual N-CH 20V/11A DFN 2x3 PAN8233QC
Dual N-CH 20V/9.5A DFN 2x3 PAN8204QC
Dual N-CH 20V/56A DFN 3x3 PAN2030QD
Dual N-CH 30V/3.6A TSOP-6 PAN6562C
Schottky Diode 1.0A / 40V Low VF=0.45V SOD-123HE SS1040LHE
1.0A / 40V SMA SK14
User Interface ESD Vrwm=3.3V / Cj=0.25PF DFN0603-2L CLAMP3321S
Vrwm=5.0V SOD-523 ESD5B5CL
Vrwm=5.0V / Cj=0.35PF DFN1006-2L CLAMP0521P
DC/DC Converter Low Voltage MosFET N-CH 20V 55mOhm SOT-23 PAN2554N
N-CH 30V 50mOhm SOT-23 PAN3018N
Schottky Diode 1.0A / 40V Low VF=0.45V SOD-123HE SS1040LHE
2.0A / 40V low VF=0.45V SOD-123HE SS2040LHE
